Overview & Key Features
-
Model: NW60DWFSW
-
Type: Freestanding full-size dishwasher, 60 cm width
-
Colour / finish: White (mark-proof white finish)
-
Capacity: 12 place settings
-
Wash Programs: 6 programs (e.g. Eco, Glass, 90 min, Rapid, Intensive, Normal)
-
Delay Start: 3 / 6 / 9 hours delay function
-
Extra features:
• Extra Drying function
• Half-load option (for smaller loads)
• Removable cutlery basket
• Anti-leak / Aqua-Stop safety device
• Child lock
Technical Specifications
| Spec | Value |
|---|---|
| Dimensions (W × D × H) | 598 × 610 × 845 mm |
| Packaged size | 645 × 672 × 890 mm |
| Weight | Net: 41.6 kg / Gross: 46.5 kg |
| Energy class | E (for the eco programme) |
| Energy consumption (eco programme) | 0.923 kWh per cycle |
| Water consumption | ~11 litres per cycle (eco programme) |
| Noise level | 49 dB(A) |
| Power supply | 220-240 V, 50 Hz |
| Plug / installation | Supplied with UK 3-pin plug |
Usage & Operation Highlights
-
Program selection & control — The push-button interface lets you select one of the 6 wash programmes; a Start/Pause button begins or interrupts a cycle.
-
Delay start — You can delay the start of a cycle by 3, 6 or 9 hours.
-

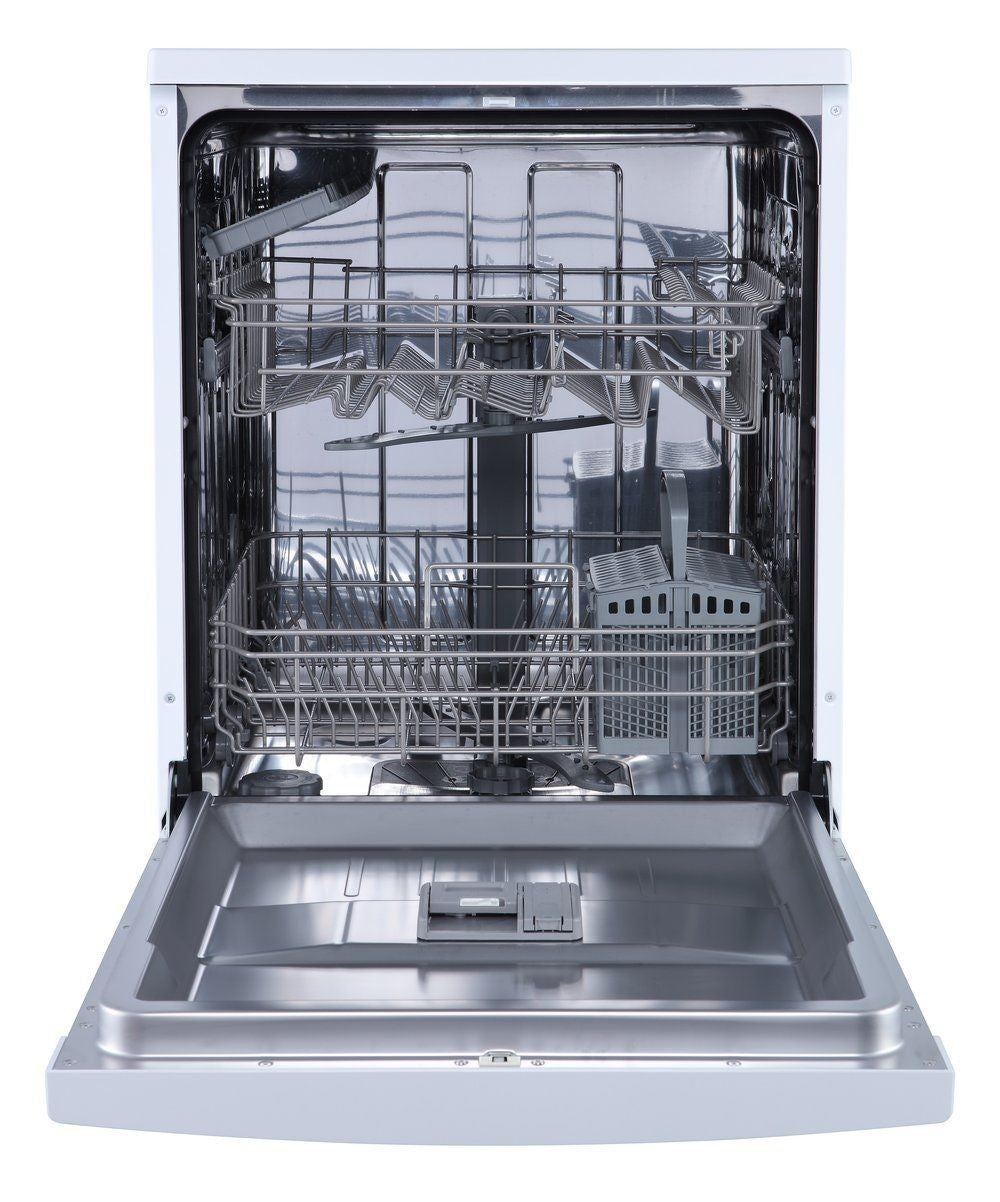

Loading baskets & cutlery — The upper and lower baskets are adjustable, and cutlery has a removable basket. Care must be taken to allow spray arms to rotate freely.
-
Water softening / salt — The unit includes a water softener; you must refill dishwasher salt when prompted.
-
Rinse aid & detergent dispensing — There are separate dispensers for rinse aid and detergent. Use only detergents made for dishwashers.
-
Maintenance — Regular cleaning of filters, spray arms, and door seals is advised to maintain performance.
-
Safety & installation — Must be installed by qualified technician. Must be level and correctly connected, water pressure constraints apply (min / max).
