It's got you covered - all day & all night.

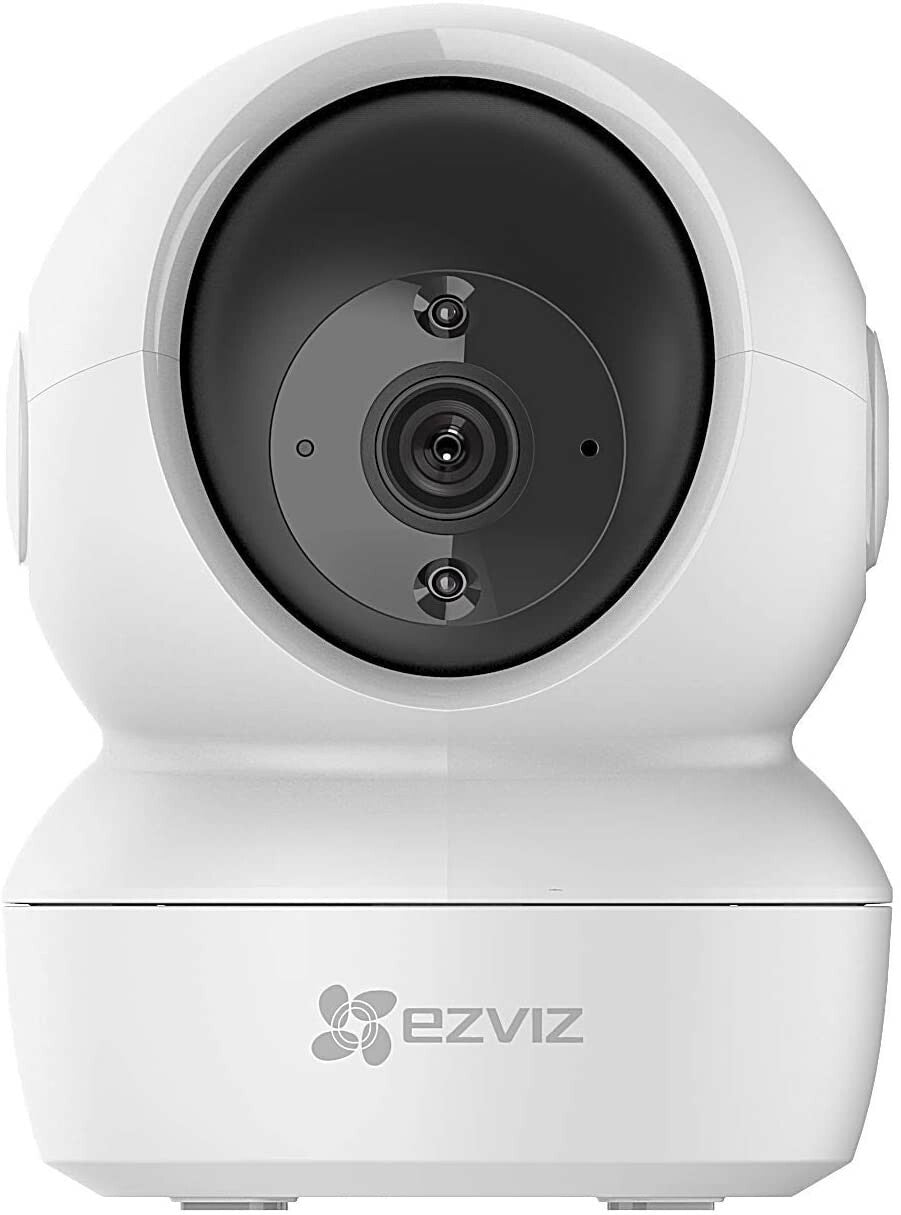

C6N
Smart Tracking
Two-way Talk
View from Anywhere
Wi-Fi 2.4 GHz
MicroSD Slot (up to 256 GB)
1080p
Smart Night Vision with Smart IR (up to 10m / 33ft.)
Motorized Pan and Tilt 360° Visual Coverage
Sleep Mode for Privacy Protection
Motion Detection

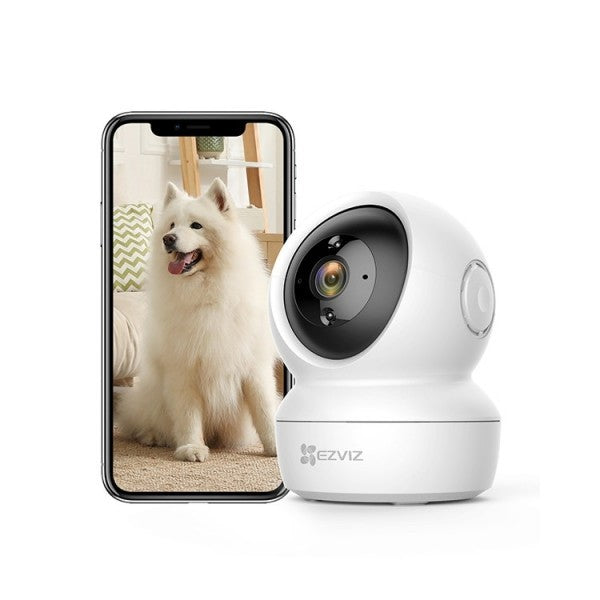

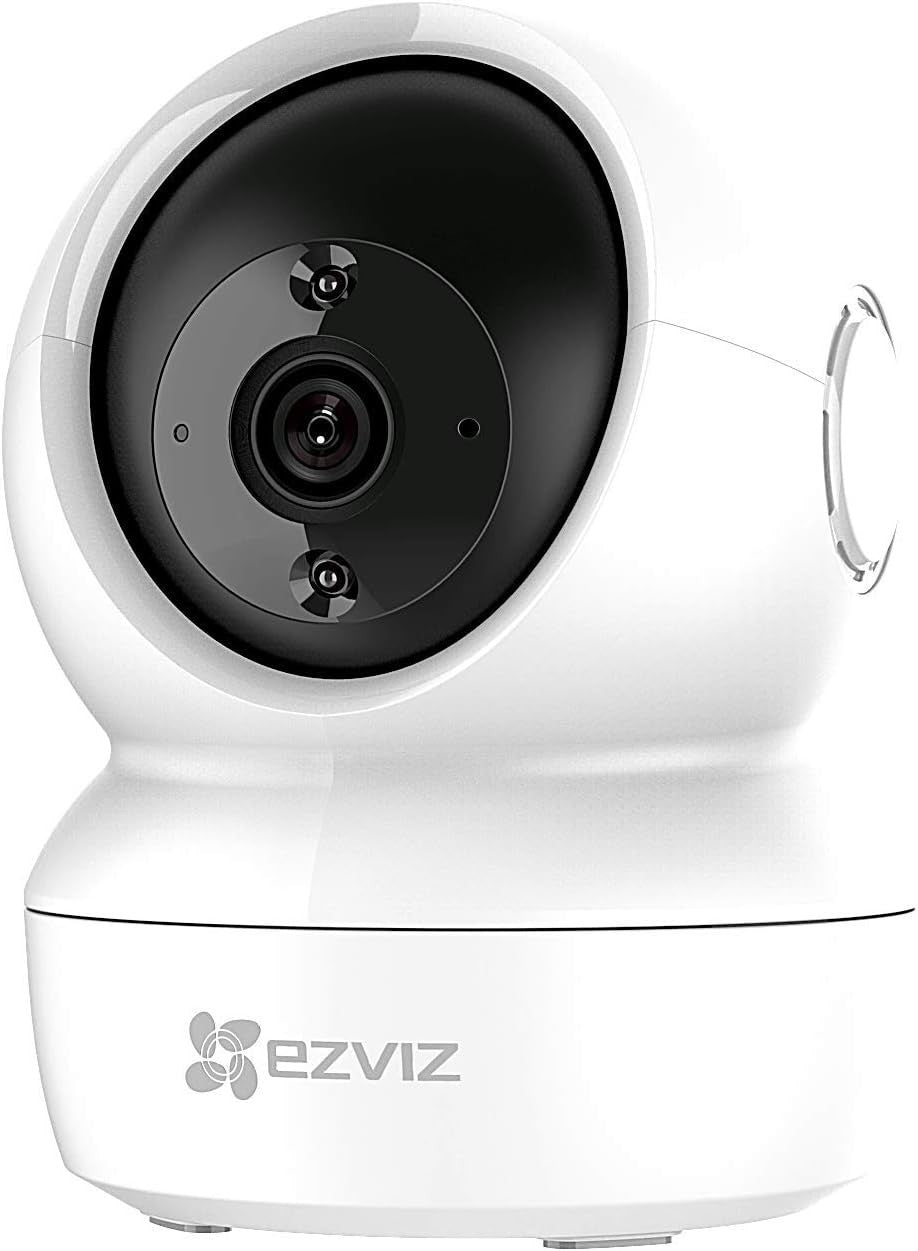

The C6N from EZVIZ comes equipped with a Smart IR function, which uses advanced infrared (IR) lighting to capture more details in dim light. With its 360-degree field of view and smart tracking function, you won't need to worry about missing a thing.
Smart Wi-Fi Pan & Tilt Camera
With Smart IR
Without Smart IR
With Smart IR, the intensity of the infrared LEDs automatically adjusts to prevent over exposure in night vision mode, so you will get more details of the object or person captured at night.
Smart night vision with Smart IR.
Zero blind spots.
Keep tabs on every corner with just one C6N.Its expansive 360-degree field-of-view ensuresfull coverage, so you don't miss a thing.
Vertical rotation 55°
Horizontal rotation 340°

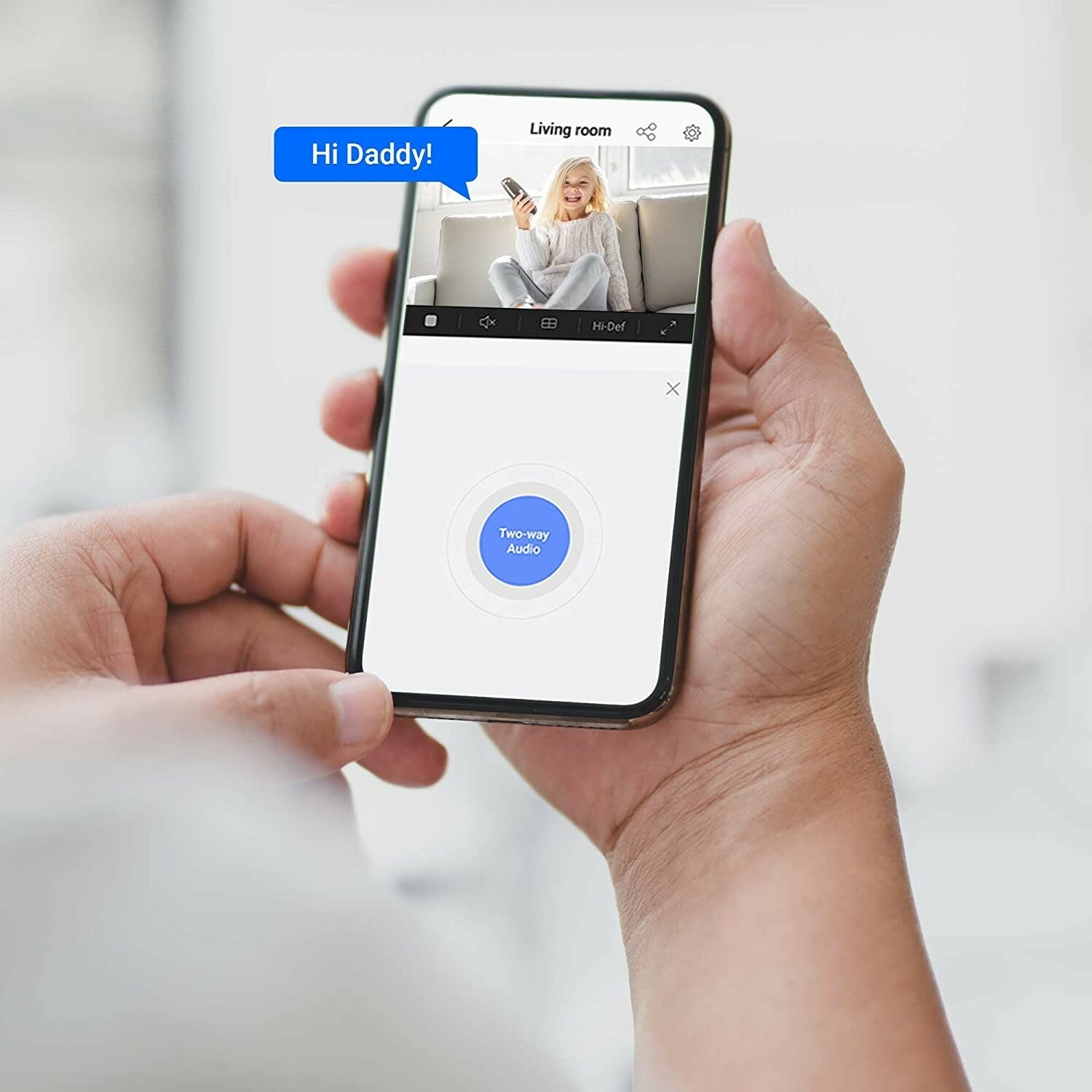

Communication anytime.
Talk to your loved ones and deter unwelcome strangers - all by using the C6N's two-way communication feature. Using the EZVIZ App on your mobile device, you can easily and conveniently enjoy communication wherever you might be.

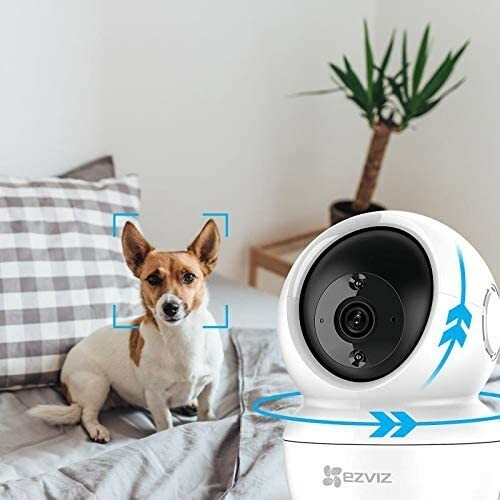

When it detects a moving object, the C6N is smart enough to automatically track its motion while alerting you with an image in real-time.
Smart tracking.
Two storage options.
With two storage options, you can choose where to save your recordings. The product can even save to the two locations at the same time for added backup in case it is damaged, or your network crashes.
Supports MicroSD Card
Encrypted Cloud Storage*
*Cloud storage service is only available in certain markets. Please verify the availability before making any purchase.
Security at your fingertips.
With the EZVIZ App, you can capture, save, protect, and share what's valuable to you.
Smart Home Enabled
Up to 8x Zoom
Video History
Instant Alerts
Audio Reception
Live View
EZVIZ app interface images are for illustrative purposes only.
C6N White
It's got you covered - all day & all night.
Specifications
Model Parameters
Model
CS-C6N-A0-1C2WFR
Camera
Image Sensor
1/4" Progressive Scan CMOS
Shutter Speed
Self-adaptive shutter
Lens
4mm@ F2.4, view angle: 85° diagonal, 75° horizontal, 45° vertical
Lens Mount
M12
Day & Night
IR-cut filter with auto-switching
DNR
3D DNR
WDR
Digital WDR
Compression
Video Compression
H.264
Video Bit Rate
Full HD; HD; Standard. Adaptive bit rate.
Max. Resolution
1920 × 1080
Frame Rate
Max. 15fps; Self-adaptive during network transmission
Network
Smart Alarm
Motion detection
Wi-Fi Pairing
AP Pairing
Protocol
EZVIZ Cloud Proprietary Protocol
Interface Protocol
EZVIZ Cloud Proprietary Protocol
Interface
Storage
MicroSD card slot (Max. 256 GB)
Power
Micro USB
Wired Network

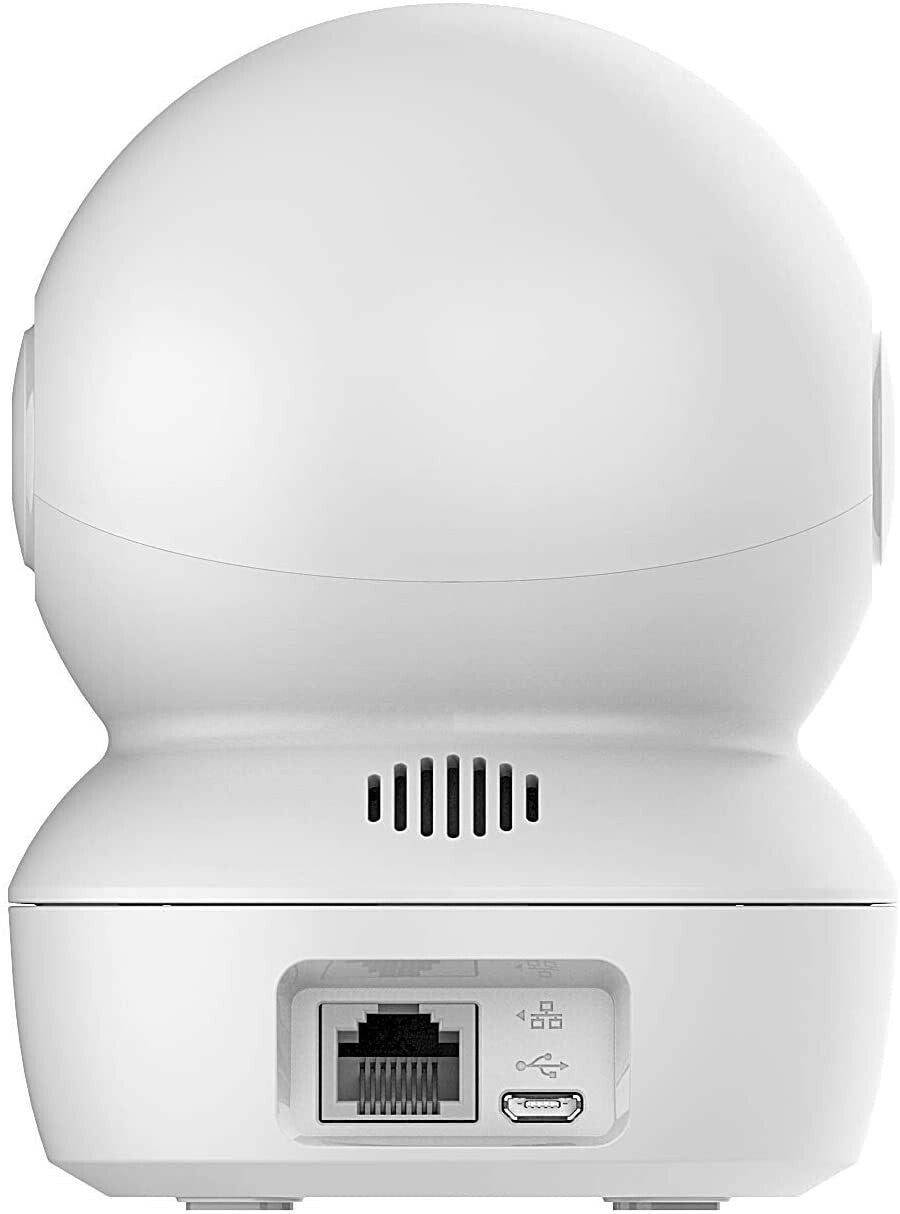

RJ45 X 1 (10M/100M self-adaptive Ethernet port)
Wi-Fi
Standard
IEEE802.11 b/g/n
Frequency Range
2.4 GHz ~ 2.4835 GHz
Channel Bandwidth
Supports 20MHz
Security
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate
11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps
General
Power Supply
DC 5V/1A
Power Consumption
5W max
IR Range
MAX. 10m (32.81 fts)
Dimensions
88 mm x 88.2 mm x 119 mm (3.46" x 3.47" x 4.69")
Packaging Dimensions
103 mm x 103 mm x 168 mm (4.06" x 4.06" x 6.61")
Bare Weight
218g (0.48lb)
Packaging Contents
Packaging Contents
C6N camera; Base; Screw Kit; Power Cable 3m (9.8 ft.); Drill Template; Power Adapter; Quick Start Guide
Operating Environment
Temperature
-10° C to 45° C (14° F to 113° F)
Humidity
95% or less (non-condensing)
Certifications
Certifications
FCC / UL / CE / WEEE / REACH / RoHS
It's got you covered - all day & all night.
C6N
Smart Tracking
Two-way Talk
View from Anywhere
Wi-Fi 2.4 GHz
MicroSD Slot (up to 256 GB)
1080p
Smart Night Vision with Smart IR (up to 10m / 33ft.)
Motorized Pan and Tilt 360° Visual Coverage
Sleep Mode for Privacy Protection
Motion Detection
The C6N from EZVIZ comes equipped with a Smart IR function, which uses advanced infrared (IR) lighting to capture more details in dim light. With its 360-degree field of view and smart tracking function, you won't need to worry about missing a thing.
Smart Wi-Fi Pan & Tilt Camera
With Smart IR
Without Smart IR
With Smart IR, the intensity of the infrared LEDs automatically adjusts to prevent over exposure in night vision mode, so you will get more details of the object or person captured at night.
Smart night vision with Smart IR.
Zero blind spots.
Keep tabs on every corner with just one C6N.Its expansive 360-degree field-of-view ensuresfull coverage, so you don't miss a thing.
Vertical rotation 55°
Horizontal rotation 340°
Communication anytime.
Talk to your loved ones and deter unwelcome strangers - all by using the C6N's two-way communication feature. Using the EZVIZ App on your mobile device, you can easily and conveniently enjoy communication wherever you might be.
When it detects a moving object, the C6N is smart enough to automatically track its motion while alerting you with an image in real-time.
Smart tracking.
Two storage options.
With two storage options, you can choose where to save your recordings. The product can even save to the two locations at the same time for added backup in case it is damaged, or your network crashes.
Supports MicroSD Card
Encrypted Cloud Storage*
*Cloud storage service is only available in certain markets. Please verify the availability before making any purchase.
Security at your fingertips.
With the EZVIZ App, you can capture, save, protect, and share what's valuable to you.
Smart Home Enabled
Up to 8x Zoom
Video History
Instant Alerts
Audio Reception
Live View
EZVIZ app interface images are for illustrative purposes only.
| Model Parameters | ||
|---|---|---|
| Model | CS-C6N-A0-1C2WFR | |
| Camera | ||
| Image Sensor | 1/4" Progressive Scan CMOS | |
| Shutter Speed | Self-adaptive shutter | |
| Lens | 4mm@ F2.4, view angle: 85° diagonal, 75° horizontal, 45° vertical | |
| Lens Mount | M12 | |
| Day & Night | IR-cut filter with auto-switching | |
| DNR | 3D DNR | |
| WDR | Digital WDR | |
| Compression | ||
| Video Compression | H.264 | |
| Video Bit Rate | Full HD; HD; Standard. Adaptive bit rate. | |
| Image | ||
| Max. Resolution | 1920 × 1080 | |
| Frame Rate | Max. 15fps; Self-adaptive during network transmission | |
| Network | ||
| Smart Alarm | Motion detection | |
| Wi-Fi Pairing | AP Pairing | |
| Protocol | EZVIZ Cloud Proprietary Protocol | |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol | |
| Interface | ||
| Storage | MicroSD card slot (Max. 256 GB) | |
| Power | Micro USB | |
| Wired Network | RJ45 X 1 (10M/100M self-adaptive Ethernet port) | |
| Wi-Fi | ||
| Standard | IEEE802.11 b/g/n | |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz | |
| Channel Bandwidth | Supports 20MHz | |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK | |
| Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps | |
| General | ||
| Power Supply | DC 5V/1A | |
| Power Consumption | 5W max | |
| IR Range | MAX. 10m (32.81 fts) | |
| Dimensions | 88 mm x 88.2 mm x 119 mm (3.46" x 3.47" x 4.69") | |
| Packaging Dimensions | 103 mm x 103 mm x 168 mm (4.06" x 4.06" x 6.61") | |
| Bare Weight | 218g (0.48lb) | |
| Packaging Contents | ||
| Packaging Contents | C6N camera; Base; Screw Kit; Power Cable 3m (9.8 ft.); Drill Template; Power Adapter; Quick Start Guide | |
| Operating Environment | ||
| Temperature | -10° C to 45° C (14° F to 113° F) | |
| Humidity | 95% or less (non-condensing) | |
| Certifications | ||
| Certifications | FCC / UL / CE / WEEE / REACH / RoHS | |
