🔍 Overview and Features
-
4 MP QHD Resolution (2560 × 1440) : Offers crisp, high‑definition video quality at 25-30 fps with efficient H.265 compression to save bandwidth and storage .
-

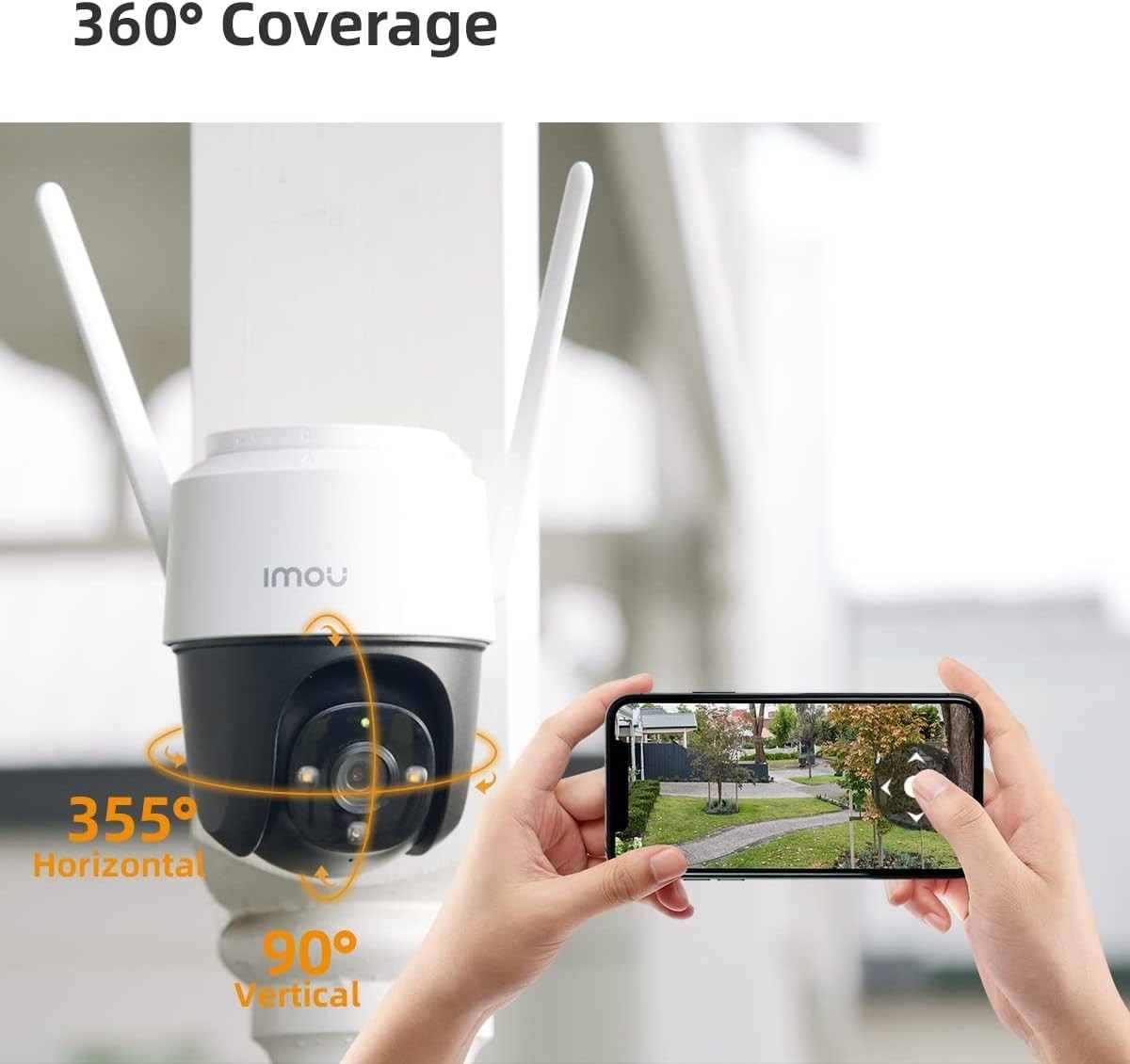

Pan & Tilt Coverage : 0-355° horizontal pan and 0-90° vertical tilt give nearly full 360° coverage with minimal blind spots
-
Smart Color Night Vision : Four night-vision modes:
-
Color Mode : Built-in spotlights deliver full‑color video at night.
-
Smart Mode : IR night view switches to color when motion is detected.
-
Infrared Mode : Black‑and‑white infrared view in total darkness.
-
Off Mode : Infrared only, to avoid light pollution
-
-
Active Deterrence : Built-in LED spotlight plus a powerful 110 dB siren deter intruders instantly
-

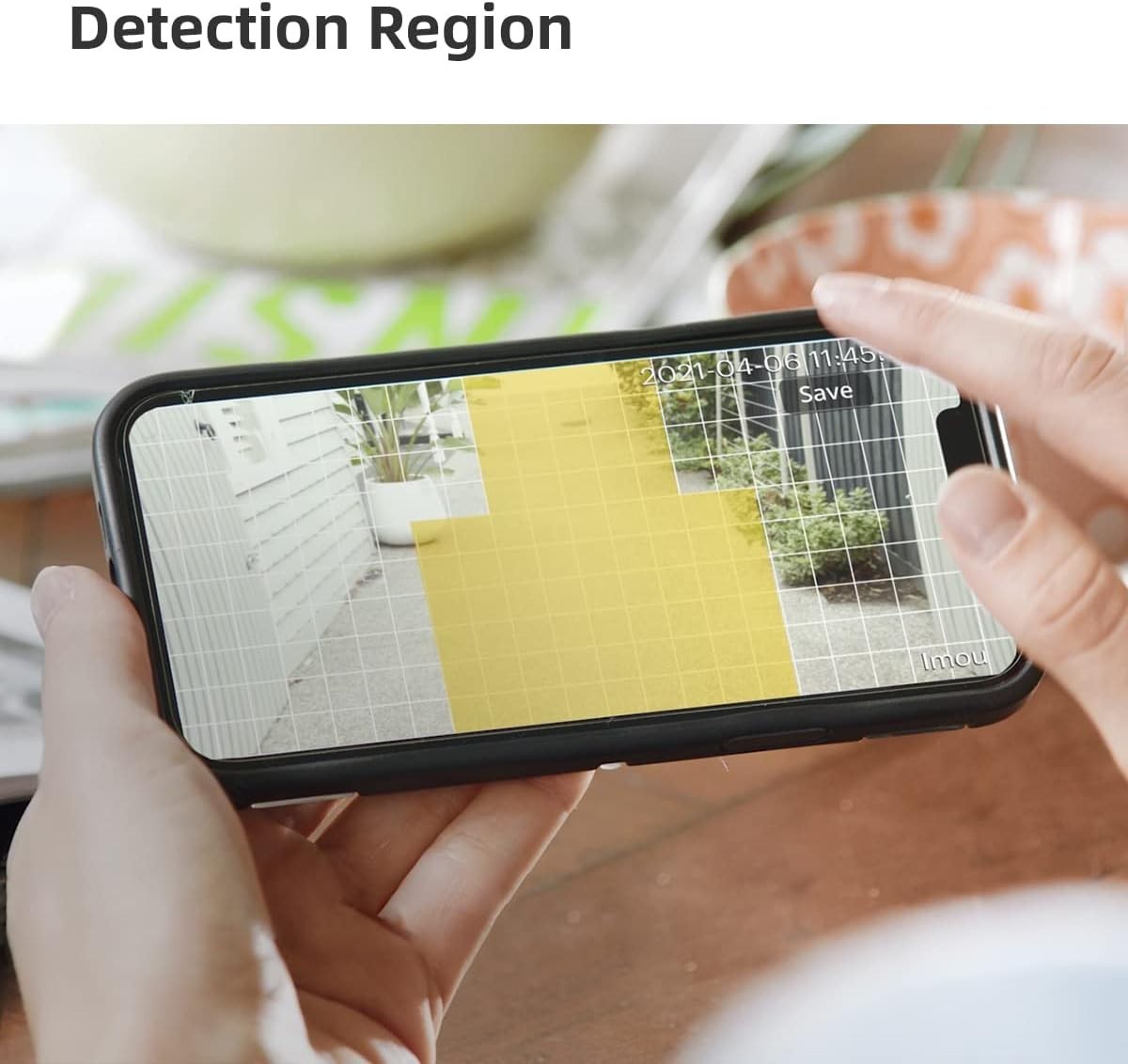

Human Detection & Smart Tracking : Built-in algorithms detect human figures and automatically pan/tilt to track motion. Notifications and snapshots sent via the Imou ap
⚙️ Technical Specifications
| Spec | Details |
|---|---|
| Sensor | 1/2.7″ Progressive CMOS, 4 MP |
| Lens | Fixed 3.6 mm (88° FOV) or optional 6 mm |
| Zoom | 16× digital |
| Night Vision Range | Up to 30 m (98 ft) |
| Connectivity | 2.4 GHz Wi‑Fi (dual antenna up to ~120 m open area), 100 Mb Ethernet, ONVIF compatible |
| Audio | Built-in mic & speaker; two-way talk; 110 dB siren |
| Storage | Micro‑SD (up to 256 GB), NVR, or Cloud |
| Power Supply | 12 V DC, 1 A; typical power draw ≈ 5.3-6.2 W |
| Operating Conditions | −30 °C to +60 °C; humidity <95% |

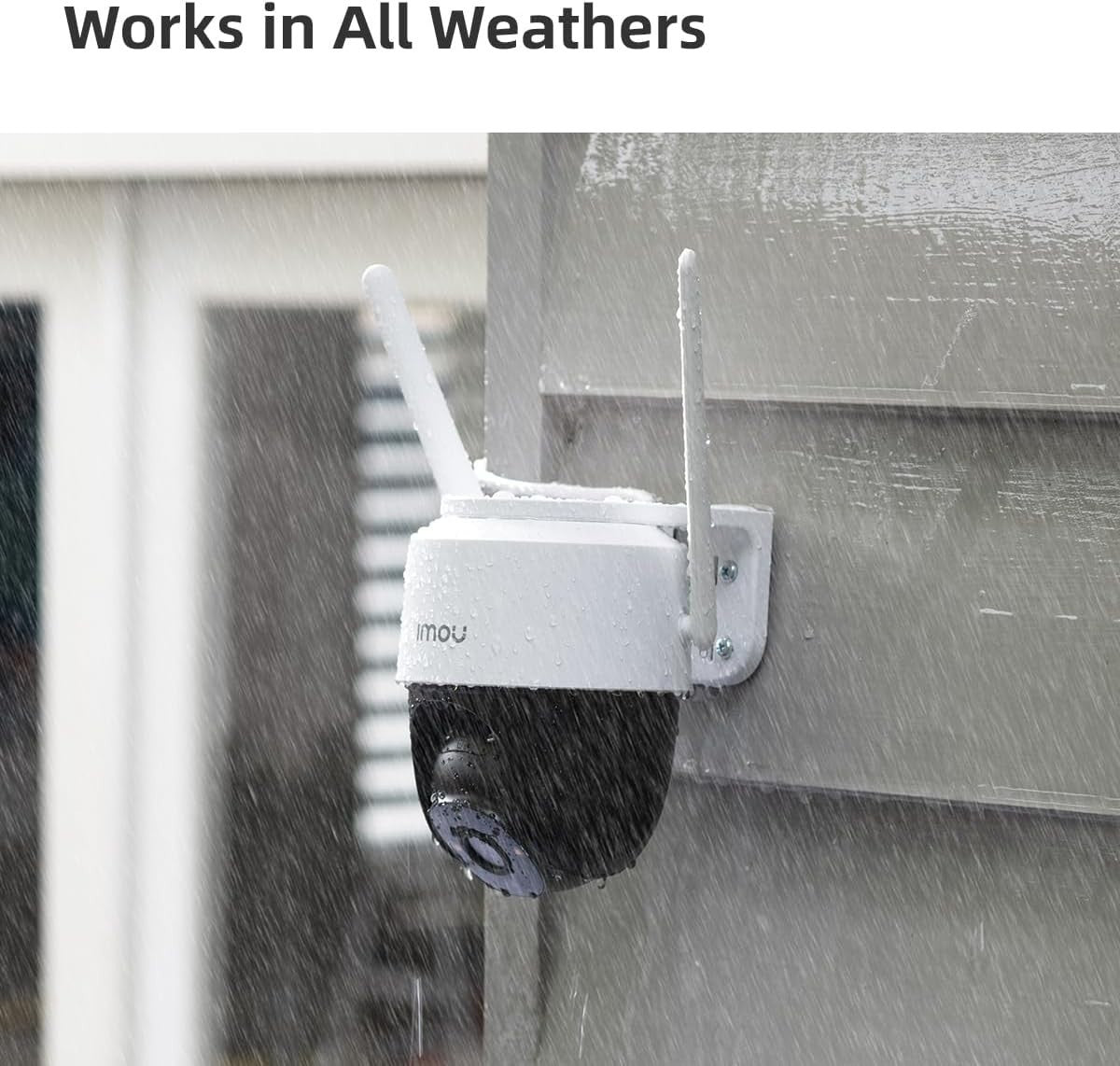

| Weatherproof Rating | IP66 dust/water resistant |
| Dimensions / Weight | 257.5 × 138.4 × 121.7 mm; ≈ 560-565 g |
| Included in Box | Camera, power adapter, mounting bracket, waterproof connector, screws, template, quick start guide |
| App Compatibility | Imou Life app (iOS/Android) |
